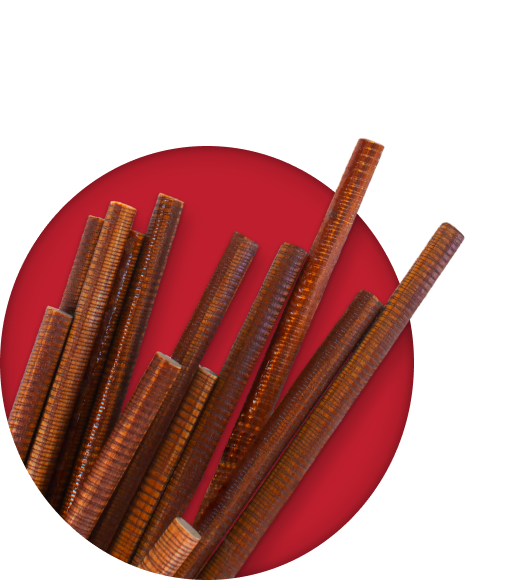

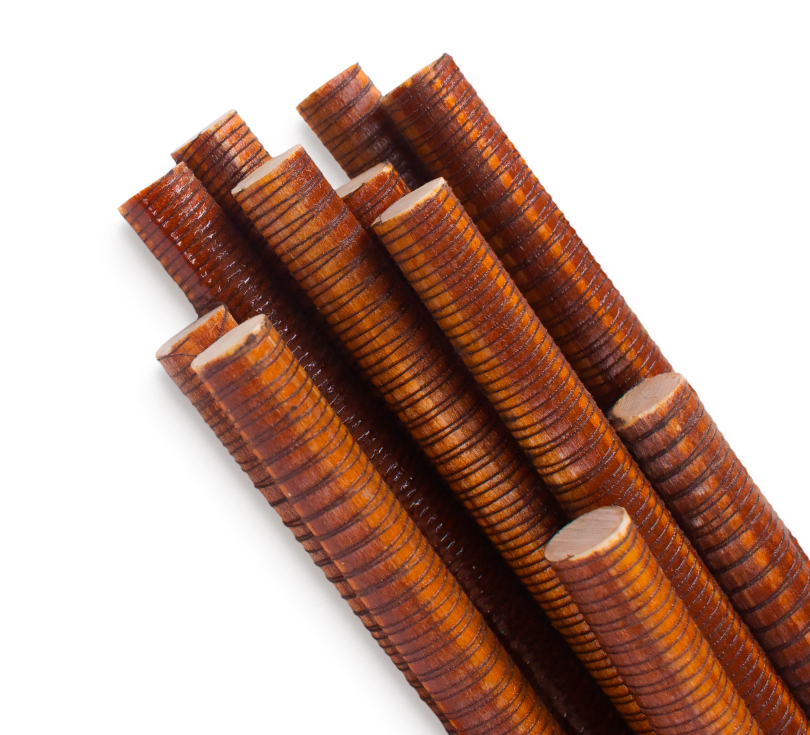

Composite Rebar
Fiberglass or basalt-plastic rebar is used as a replacement for metal rebar in civil and industrial construction. It is produced in accordance with GOST 31938-2022
Properties of Composite Rebar
Not afraid of chemical attack and moisture, that affects the durability of the materials usage and the possibility of their application at any time of the year
Corrosion and chemical resistance
Tensile strength of composite rods and mesh is 3 times higher than its steel counterpart
Tensile strength
Does not conduct electricity or interfere with cell phone and internet signal propagation
Dielectric, no radio interference
Does not form thermal bridges — this improves the thermal insulation parameters of the construction object
Low thermal conductivity
Even at severe frosts composite rebar does not lose its properties. Temperature threshold of operation ranges from -70°C to +100°C
Heat resistance
Lack of welding simplifies installation — any worker with a minimum set of tools can handle the binding of rebar
Easy to install
Composite Rebar characteristics vs. steel rebar characteristics
Characteristics of materials
A-III Steel rebar (А400 - 25G2S)
Composite Rebar (Fiberglass)
390
ULTIMATE TENSILE STRENGTH, MPA
1500
210000
ELASTIC MODULUS, MPA
55000
25
PERCENT ELONGATION, %
2,2
46
THERMAL CONDUCTIVITY COEFFICIENT
0,35
13-15
LINEAR EPANSION COEFFICIENT
9-12
7850
DENSITY, KG/M3
1900
Heat-conductive
THERMAL CONDUCTIVITY
Non-heat-conductive
Electrically-conductive
ELECTRICAL CONDUCTIVITY
Dielectric
6-80
MANUFACTURED SECTIONS
4-30
Composite Fiberglass Rebar
Steel rebar
11.7 m
LENGTH OF DIMENSIONAL RODS UP TO
Any length on request
Low
CORROSION AND CHEMICAL RESISTANCE
Does not rust, is resistant to aggressive media
More advantages of Composite over Metal
Cost savings in materials
Composite rebar is cheaper than metal rebar, and its high strength allows it to replace steel analogs with a larger diameter
Reduced transportation costs
Due to the compact shape of the package, transportation of such rebar is much easier — one can use the trunk of any car
Expansion coefficient like concrete's
There is no imbalance in the reaction between concrete and composite rebar caused by temperature changes — this protects concrete structures from cracking
Low specific weight
Having low weight, composite rebar does not create unnecessary loads on the main elements of the building — it can be used where it is impossible to use metal rebar
Energy efficiency
The heating costs of a building constructed using composites are lower compared to steel rebar constructed buildings
Waste-free use
Rebar flexibility allows to eliminate the amount of waste that is inevitably present when using metal rebar
Get product samples
We are confident in the quality of our products because we comply with all legal requirements for composite building materials. You can also make sure of this by ordering our samples with delivery
