Anchor fastening of the hinged ventilated facade
It is used for fastening facing hinged facade systems with a ventilated air gap in buildings and structures under construction and under reconstruction, made, for example, of two-layer reinforced concrete wall panels

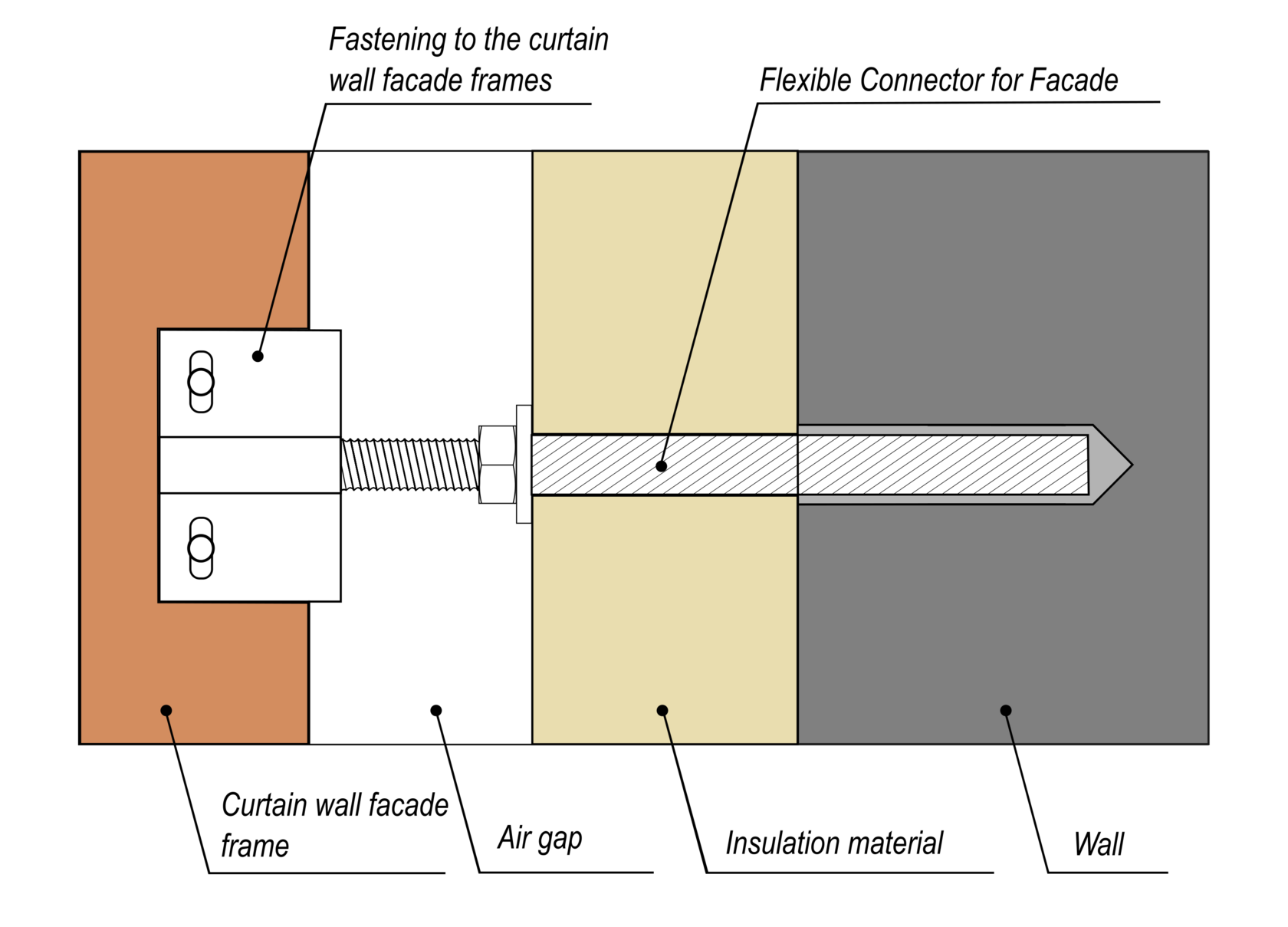

The design of the anchor fastening of the hinged ventilated facade

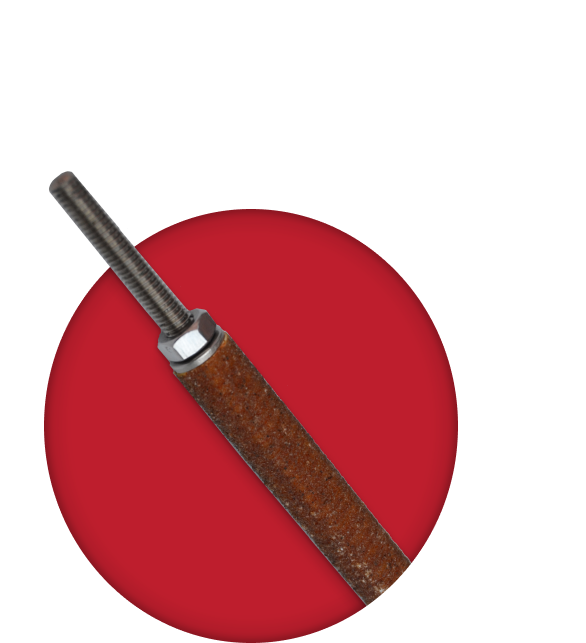

It is a fastener without cold bridges for walls made of concrete or brick with a thermal insulation layer, as well as without it. The anchorage consists of a fiberglass rod with a threaded end made of stainless steel
Advantages of anchor fastening for hinged ventilated facades
The thermal insulation performance of the glass composite anchorage is about 200 times better than that of aluminum wall brackets, and almost 15 times better than that of stainless steel brackets
Mounting without cold bridges
Due to the exceptional structural properties of glass composite and stainless steel, a high level of insulation is achieved. Also, rust stains do not form on the facade elements, which preserves the aesthetic appearance of buildings
Optimal insulation characteristics without rust
The cylindrical rod can be easily fixed in a concrete or brick wall using a composite mortar. The metric connecting thread allows you to install an anchor plate or base without a frame or braces
Easy installation
The low thermal conductivity of the anchorage means that the thickness of the thermal insulation can be significantly reduced without compromising the thermal conductivity coefficient of the walls. In comparison with aluminum wall brackets, this allows you to save up to 50% on insulation materials
Economic efficiency
The operating temperature threshold of the composite mount is from -70°C to +100°C
Fire-fighting properties
The anchorage is not chemically affected, which affects the durability of the materials and the possibility of their use at any time of the year
Corrosion and chemical resistance
The anchor fastening of the hinged ventilated facade is patented
Get product samples
We're confident in the quality of our products, because we comply with all legal requirements for composite building materials. You can also make sure by ordering samples with delivery
