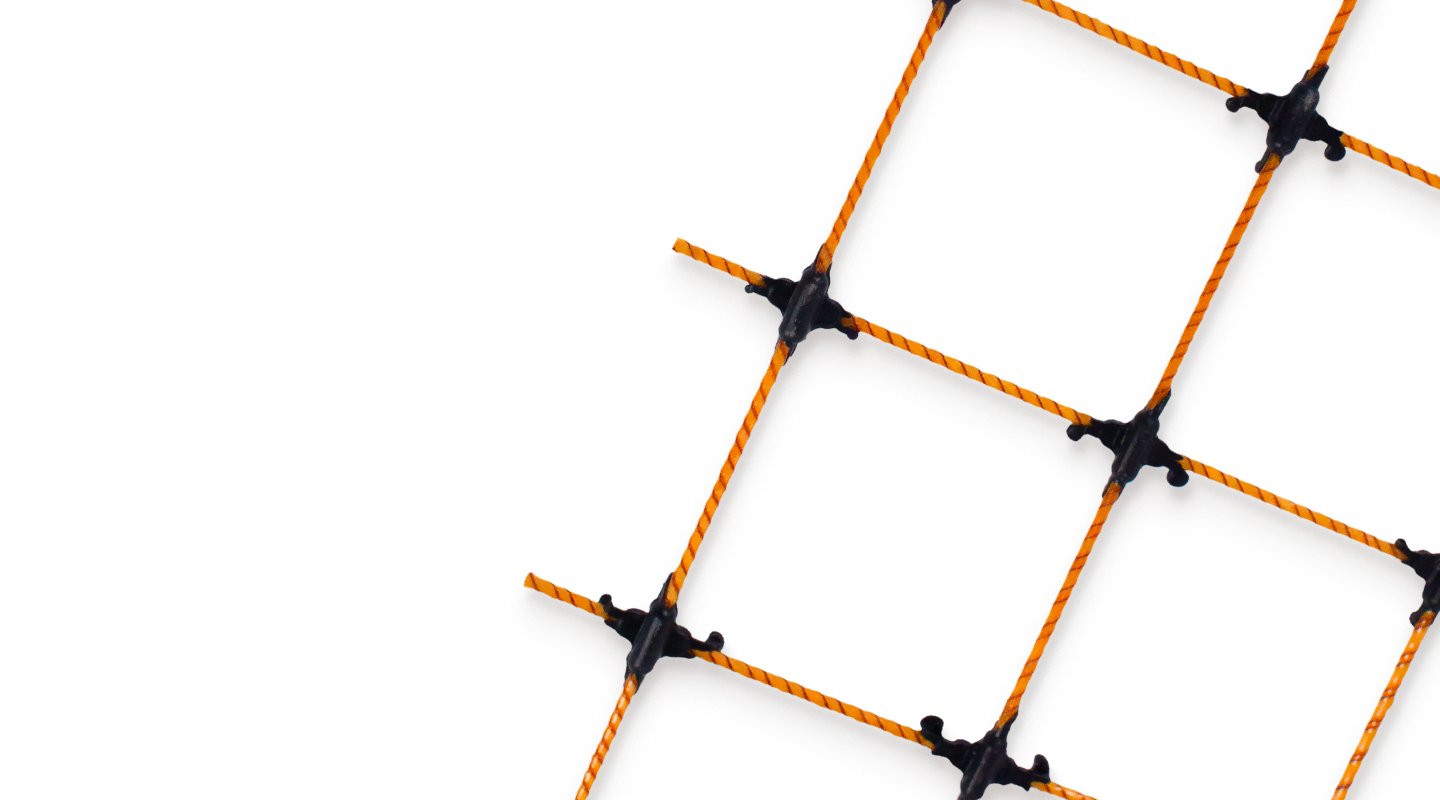

Composite Mesh
Designed to replace traditional galvanized or stainless steel mesh for reinforcement of construction objects, for heated floor and industrial floors, for plastering

It is made of fiberglass rods arranged in two mutually perpendicular directions and is securely fixed at the contact nodes with thermoplastic material
Composite Mesh applications
Properties of Composite Mesh
Not afraid of chemical attack and moisture, that affects the durability of the materials usage and the possibility of their application at any time of the year
Corrosion and chemical resistance
Tensile strength of composite rods and mesh is 3 times higher than its steel counterpart
Tensile strength
Does not conduct electricity or interfere with cell phone and internet signal propagation
Dielectric, no radio interference
Does not form thermal bridges — this improves the thermal insulation parameters of the construction object
Low thermal conductivity
Even at severe frosts composite rebar does not lose its properties. Temperature threshold of operation ranges from -70°C to +100°C
Heat resistance
Lack of welding simplifies installation — any worker with a minimum set of tools can handle the binding of rebar
Easy to install
The shear strength of composite mesh rods is the same as its steel counterpart
Shear strength
Composite Mesh vs. metal mesh
Characteristics of materials
Metal mesh made of Vr-1 wire GOST 23279
Composite Mesh
570
TENSILE STRENGTH, MPA
1200
720
BREAKING STRESS OF RODS, KGF
760
56
THERMAL CONDUCTIVITY COEFFICIENT
0,46
2220
WEIGHT PER UNIT AREA, G/M2
360
Up to 600°С
FIRE RESISTANCE
Highest degree of fire safety*, over 300 °C
* according to Norwegian Institute research
Electrically-conductive
ELECTRICAL CONDUCTIVITY
Dielectric
Magnetizes
MAGNETIC CHARACTERISTICS
Magnetically inert
Heat-conductive
THERMAL CONDUCTIVITY
Non-heat-conductive
Сorrosible
CORROSION AND CHEMICAL RESISTANCE
High corrosion and chemical resistance

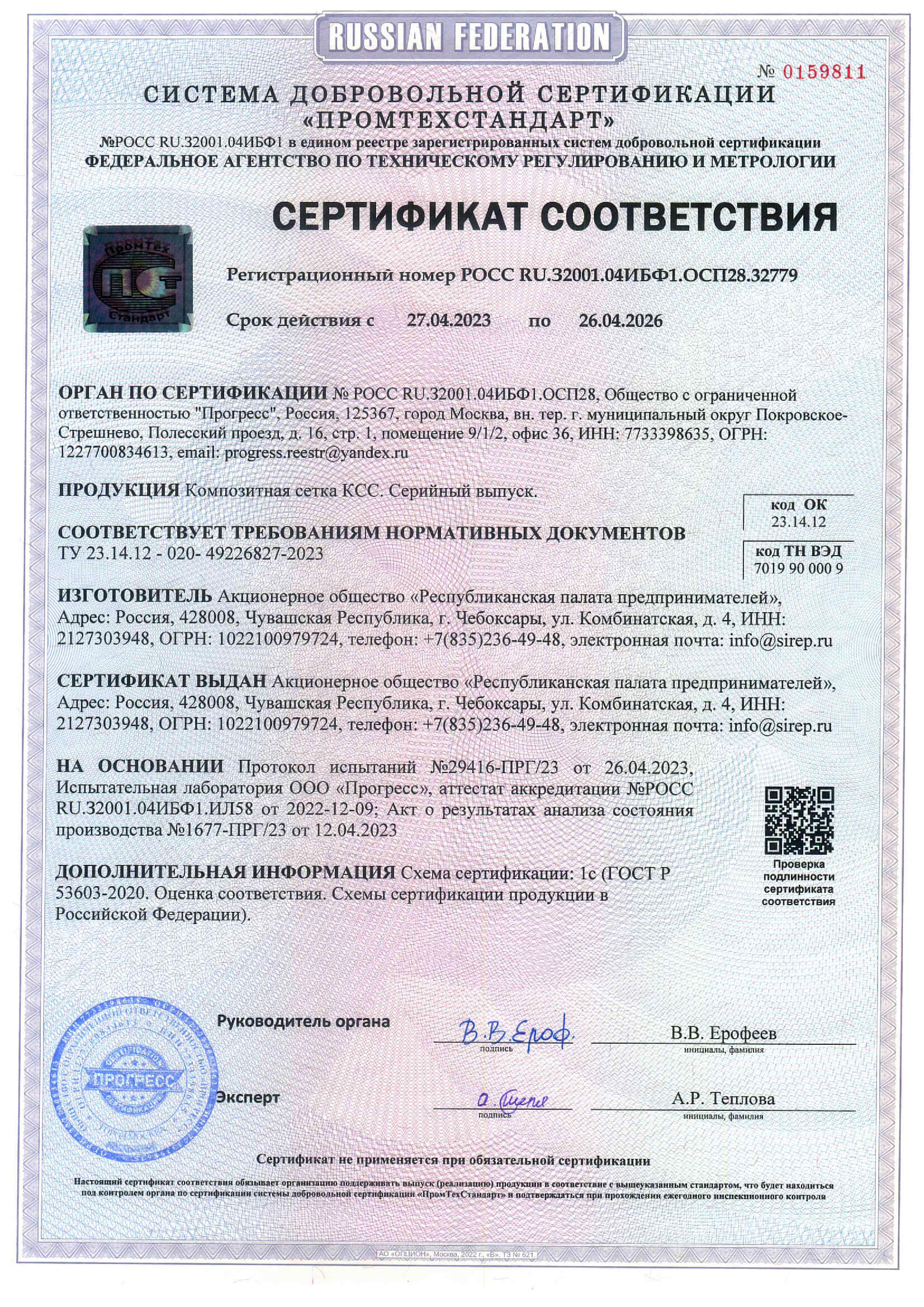

Certificate of Conformity for Composite Fiberglass Mesh
Documents and certificates
Our PANEF Composite Mesh has passed all certification tests and confirmed its compliance with the requirements of Technical Specifications, and it fully complies with «GOST R 2019. Polymer composite mesh for reinforcement of brickwork» and «GOST R 57265− 2016/EN 846−3:2013. Reinforcement mesh for masonry»
Get product samples
We are confident in the quality of our products because we comply with all legal requirements for composite building materials. You can also make sure of this by ordering our samples with delivery
