Flexible mounting loops
The design of the flexible mounting loop (PMG) is a textile tape for slings, connected by longitudinal seams and equipped with anchors made of composite reinforcement. The surface of the tape is protected by a polyethylene film. We have developed several types of flexible mounting loops with different standard loads for use in both three-layer facade and single-layer inter-apartment panels.
Designed for the extraction of reinforced concrete products from molds, as well as for loading and unloading and installation work
Ease of installation and the absence of need to remove them significantly reduce material and time expenditures both in the production of sandwich panels and at the construction site
Comparable price or cheaper than steel loops!

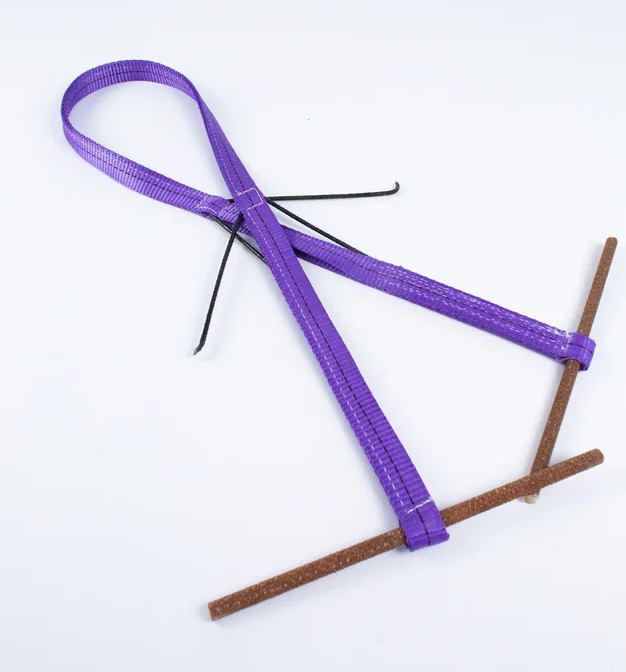

Flexible mounting loops with 2 anchors
Flexible mounting loop with two anchor sections PMG2 is a textile tape for slings, connected by longitudinal seams and equipped with two main anchors made of composite reinforcement, as well as two ^-shaped anchor rods

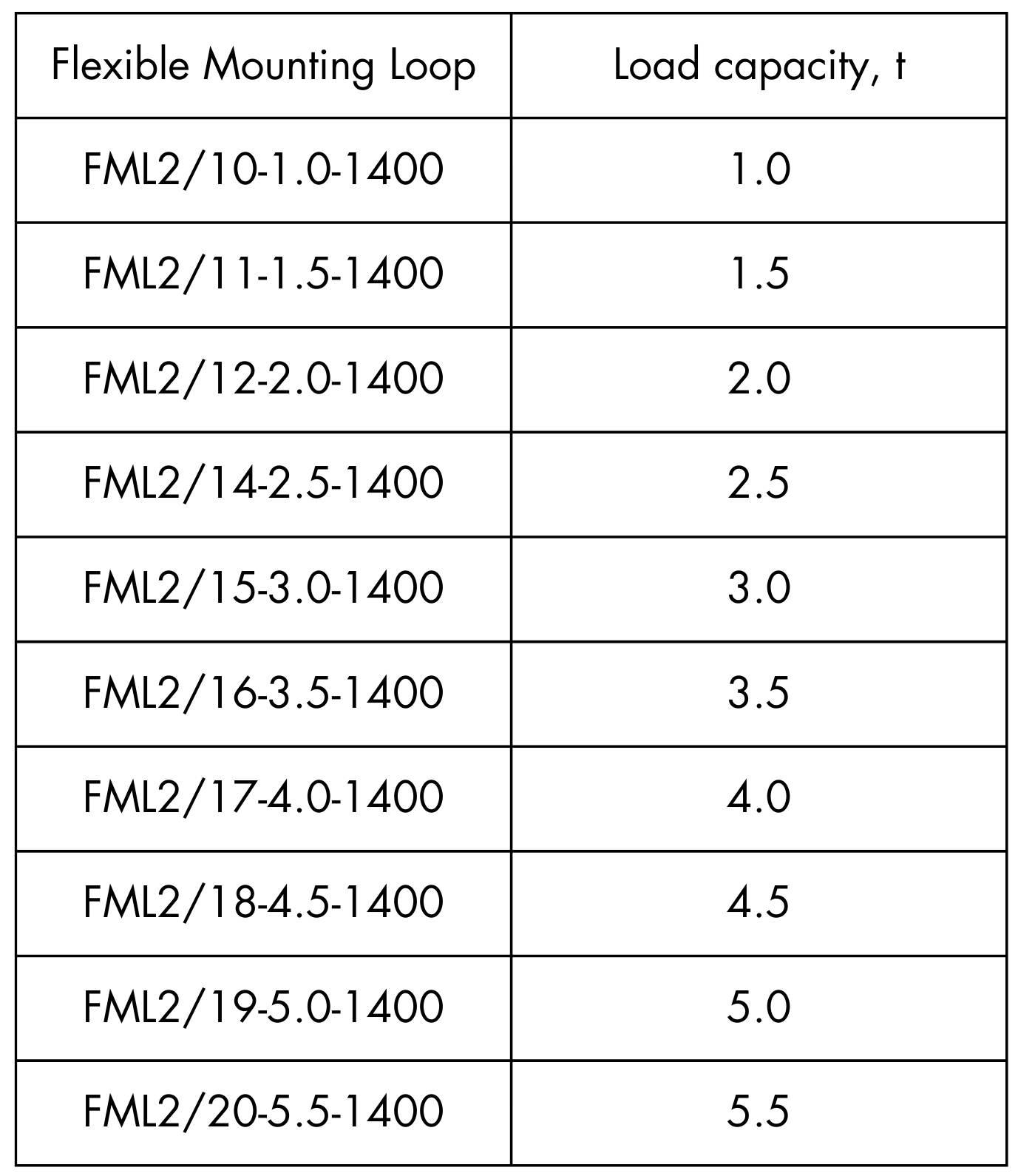

Several types of PMG2 with different carrying capacity have been developed:
The flexible mounting loop is a completely new product for the market. It was developed by the company to solve the problems of energy saving and increase labor productivity. Loop production is carried out in accordance with TU 13.96.13-015-49226827-2021
An innovative product on the market

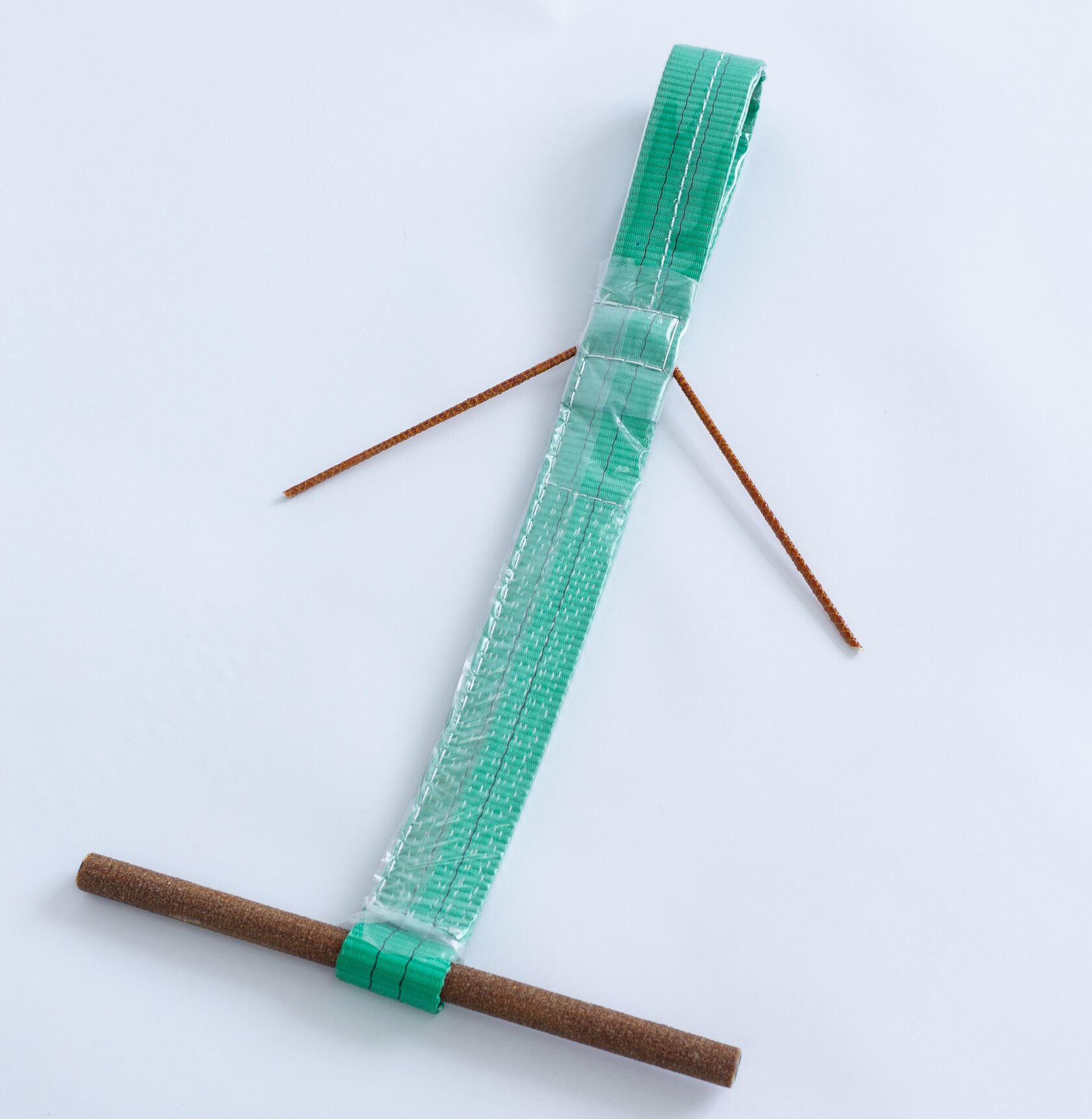

Flexible mounting loop with 1 anchor
Flexible mounting loop with one anchor section PMG1 is a textile tape for slings, connected by longitudinal seams and equipped with one main anchor made of composite reinforcement, as well as one ^-shaped anchor rod

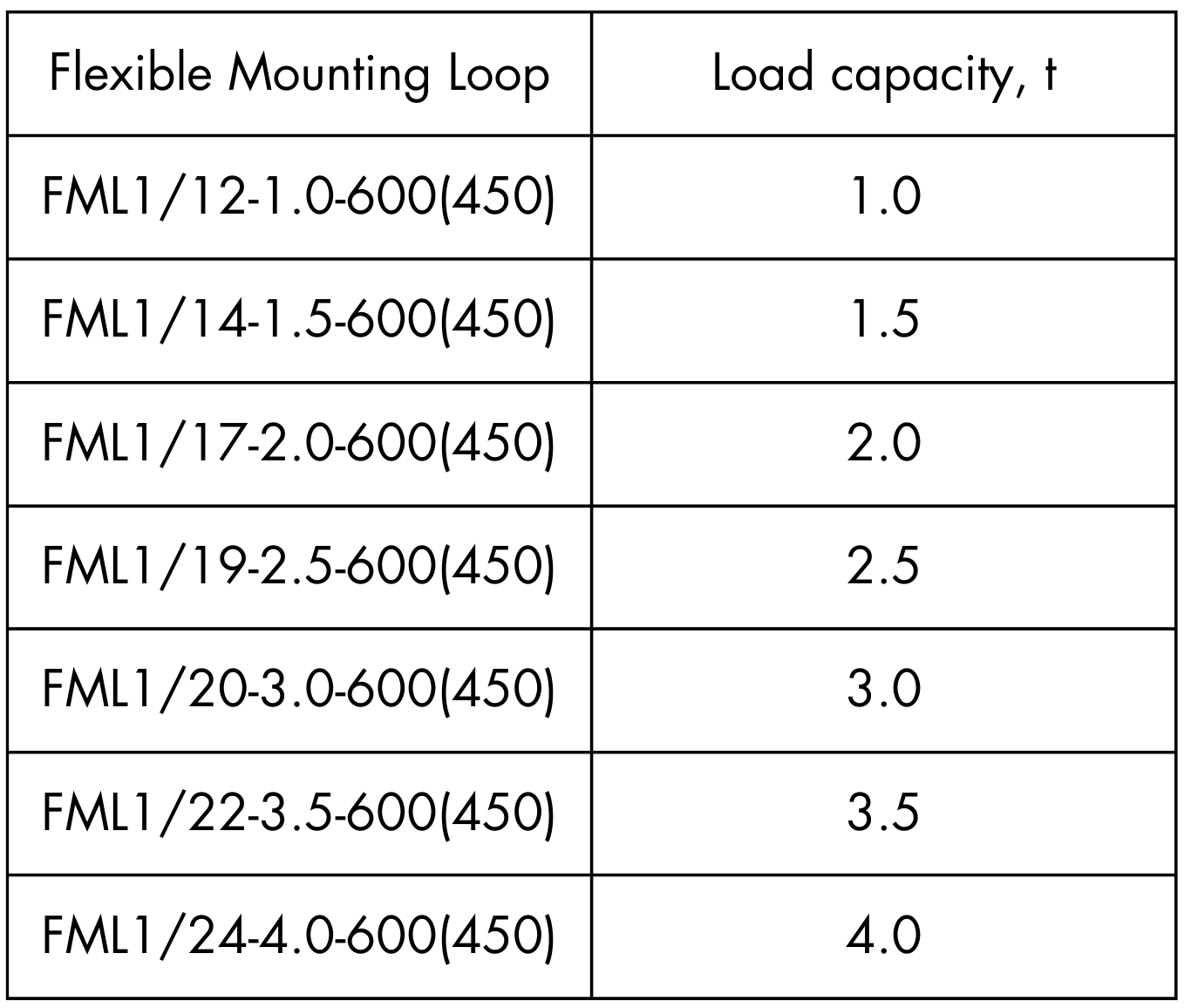

Several types of PMG1 with different carrying capacity have been developed:
The flexible mounting loop is a completely new product for the market. It was developed by the company to solve the problems of energy saving and increase labor productivity. Loop production is carried out in accordance with TU 13.96.13-013-49226827-2021
An innovative product on the market
The lifting formwork hinge is a completely new product on the building materials market. Developed by PANEF in order to solve the problems that arise when using a mounting loop made of metal produced by integrated house-building factory or precast concrete plants.
Innovative product on the market
Designed to extract concrete products from the formwork during lifting operations. PPO is a product made of textile tape for slings, made by folding a single tape in half and fastened with longitudinal seams of both layers. The loop contains an anchor eye, in which 2 anchors are fixed. Anchors are segments of composite reinforcement
Formwork lifting loop (PPO)
Advantages of
Flexible mounting loop
Easy mounting / dismounting of loops
Eliminates the need for subsequent dismantling of the loop. Easy to cut with a sharp knife, eliminating the need for additional tools
Increased productivity
Installation of the flexible mounting loop takes about 2 minutes. There is no need to create a recess and then fill it with foam, which saves a lot of time
Lightening the entire structure
Allows you to reduce the thickness of the facade layer of concrete, thereby facilitating three-layer concrete panels and affects the reduction of the total weight of the building
Reduced material and time costs
Flexible mounting loops are several times cheaper than similar products made of steel, there are no costs for dismantling the loops, embedding the excavation with concrete or mortar, which reduces the cost of manual labor and materials
No risk of fire hazard
Allows you to reduce the thickness of the facade layer of concrete, thereby facilitating three-layer concrete panels and affects the reduction of the total weight of the building
Reducing the risk of injury at work
Dismantling metal loops requires special safety measures, both in relation to the employee and the work technology. Flexible mounting loops can be simply cut with a sharp knife
What difficulties thermal bridges create:
Allows to completely eliminate the problem of the occurrence of "thermal bridges"
Condensation leads to the appearance of mold in apartments, which harms the health of residents, and worsens the appearance of the house
Formation of сondensation
Increased energy consumption
The expensive heat escapes through the thermal bridges, so the heating costs of the building increase by about 30%
Reduced security
Thermal bridges lead to cracks, a decrease in the bearing capacity of the structure, which leads to an increase in the cost of building maintenance
Applications of flexible mounting loops
Flexible loop life cycle: comparison of time costs
Installation and dismantling of loops is an important step when working with a three-layer sandwich panel. In a large production, the number of such works can be dozens per day, therefore, even a slight saving of time over a long distance can significantly save the budget and increase labor productivity.
* Data provided by the head of the production department of LLC "Klinker" (Plant "Ecolinker") R. Kuznetsov
Steel loop
Flexible loops
2 min
FIXING ON REINFORCED FRAME
2 min
7 min
RECESS DEVICE AND FOAM SEALING

10 min
LOOP SLICE

10 min
SEALING THE RECESS

29 min
TOTAL TIME SPENT*

2 min
375
THE COST OF A NORMAL WORKING HOUR, ₽

375
181,3
TOTAL SPENDINGS ON MOUNTING/DISMANTELING 1 LOOP, ₽
12,5
Building's heat loss:
Composite and metal comparison
Recently, a trend has emerged in Russia to improve the energy efficiency of construction projects. It is due to both the introduction of new standards and requirements, and the emergence of new building technologies and materials.
HEAT LOSS
0%
MOUNTING LOOPS

0,18 W/mK
DIAGONAL LINKS

0,46 W/mK
Composite:
Metal:
17 W/mK
DIAGONAL LINKS
58 W/mK
MOUNTING LOOPS
19,7%
HEAT LOSS
Documents and certificates
The flexible mounting loops have passed all the necessary production tests and confirmed their high quality. The products received a certificate of conformity, Conformity Certificate No. ROSS RU. АЖ40. N01615, as well as a letter from the Ministry of Construction of Russia, in which it is reported that the flexible mounting loops are not included in the list of new materials subject to verification and confirmation of suitability for use in construction
Letter from the Ministry of Construction of Russia
Letter from "FAU FTSS"
Conformity Certificate for flexible mounting loops
Get product samples
We're confident in the quality of our products, because we comply with all legal requirements for composite building materials. You can also make sure by ordering samples with delivery
